Embed a Clickwrap

This is a simple example outlining how to embed a clickwrap within an iframe.

Goal

Technical audiences will learn how to use Ironclad's Clickwrap Workflow to implement embedded clickwrap in their own pages. Some examples of where this use case/flow could be used:

  1. Accepting Terms of Service during account creation
  2. Clicking "I agree" before starting a free trial
  3. Privacy Policy acknowledgment
  4. Cookie consent banners

Overview

This guide will cover the steps for embedding a clickwrap in your own page, once you have created and published a Clickwrap Workflow.

Prerequisites

  1. Clickwrap Workflows must be purchased and enabled for your company.
  2. A Clickwrap Workflow must be created and published.
  3. The hostname of the page you are embedding clickwrap within must be listed as an allowed domain in the published Clickwrap Workflow.

Public API access is helpful, but not strictly required to use and embed Clickwrap Workflows.

Note: This guide and any software contained in it should be used at your own risk by individuals qualified to evaluate its effectiveness. IT IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL IRONCLAD BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH YOUR USE OF THIS GUIDE OR ANY SOFTWARE IT CONTAINS.

Your use of the Ironclad API must comply with Ironclad’s API Terms of Use (available at https://legal.ironcladapp.com/api-terms-of-use) and the terms of the Enterprise Services Agreement (or equivalent) entered into between you and Ironclad.

Details

Data Schema

Just as with launching workflows via the public API, launching a Clickwrap Workflow requires knowledge of the data schema of the workflow configuration, to correctly format the launch payload.

If you have access to the public API, you can use the Retrieve a Workflow Schema endpoint to retrieve the schema for your Clickwrap Workflow.

If you do not have access to the public API, you can check the properties panel in Workflow Designer for data types and property keys for each property. The property key is the same as the property code, except without the enclosing [] brackets (e.g. if [counterpartyName] is the property code copied from Workflow Designer, counterpartyName is the property key).

Copy Property Code in Workflow Designer

Example values for each data type can be found in the Launch a Workflow guide.

Iframe Element URL

Once you have the minimum requirements, you will need to have a clickwrap workflow created. Before publishing, please make sure that on the Create tab, under Settings, that you have added the domain URL of the page where you will be embedding. Then, you can publish the workflow and click “Copy Link”. The link that is copied to your clipboard is the link you will use for the iframe URL.

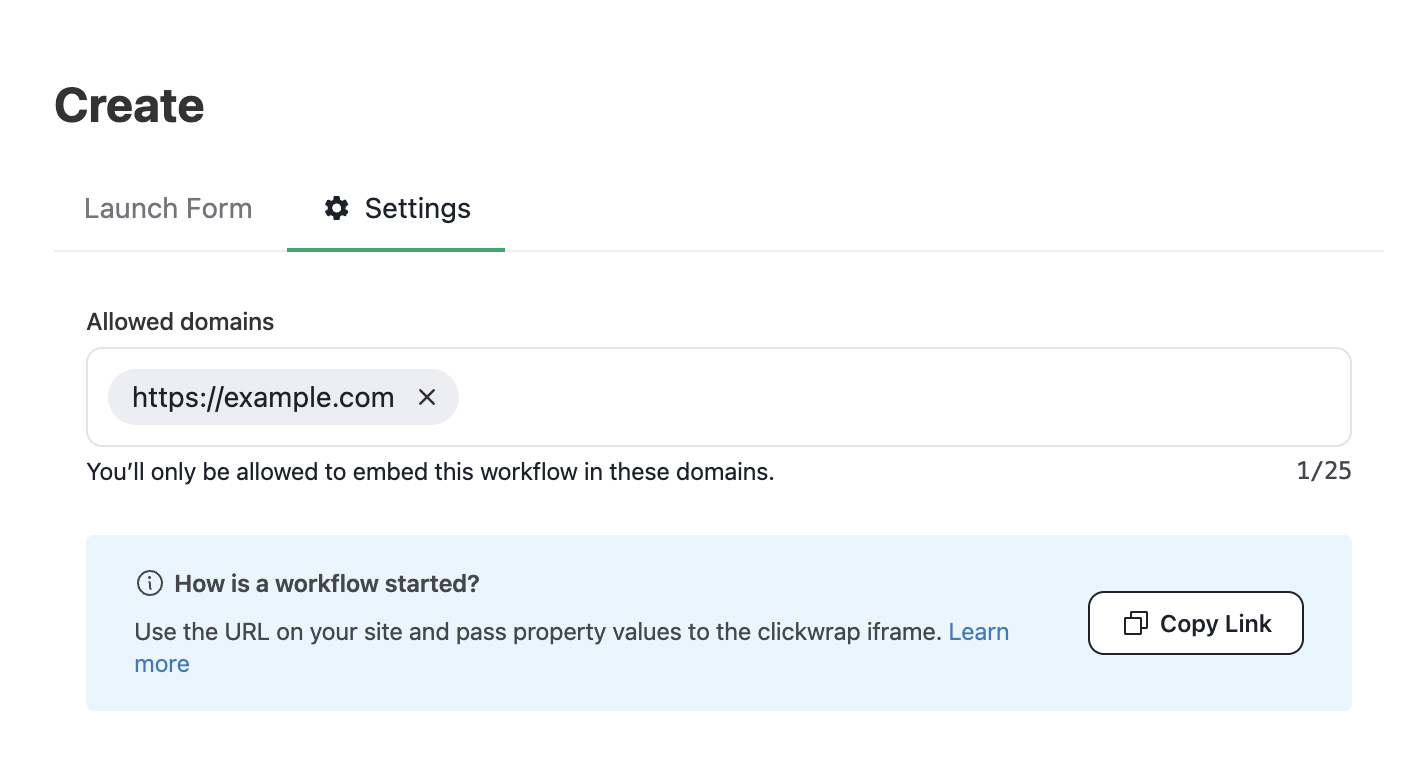

Copy Clickwrap Link in Workflow Designer

More information about configuring a Clickwrap Workflows can be found in our help center.

The URL provided is of the format https://ironcladapp.com/clickwrap/:workflowTemplateId?jwt=... (e.g. https://ironcladapp.com/clickwrap/683774e21040896675e566f8?jwt=ey12345...). You will need the workflow template ID to send messages to the iframe.

For your iframe element, there is one special detail parameter that you will also need to add to the URL you just copied. You will need to add a query parameter parent where the value is the domain of what you entered when configuring your allowed origins. For example, you may add to the end of the copied iframe a value like &parent=https://www.example.com.

Once you have that full URL (i.e. copied URL + parent parameter), you can add an iframe element to the page with the full URL as the src.

Important: To prevent the iframe from showing a white background while loading, set visibility: hidden. Then, be sure to set the style.visibility of the iframe to visible once the clickwrap_load_succeeded event fires.

Loading Embedded Clickwrap

To load the checkbox and acceptance language, you must post a set_data message to the iframe. The iframe will not load and display the checkbox and acceptance language without receiving this message.

Here is an example of sending the set_data message:

const CLICKWRAP_IFRAME_ORIGIN = 'https://ironcladapp.com';

// template ID, which is the ID in the iframe URL
const WORKFLOW_TEMPLATE_ID = '64c069ba71c24ecfff394e3a';

type ParentToIframeMessageData = (
  | { type: 'send_acceptance' }
  | { type: 'set_data'; data: { formValues: Record<string, any> } }
) & { workflowTemplateId: string };

function sendIframeMessage(messageData: ParentToIframeMessageData) {
  const iframeInPage = document.getElementById('my-iframe');
  if (iframeInPage == null) {
    console.error('Unable to find iframe in page');
    return;
  }
  iframeInPage.contentWindow.postMessage(messageData, CLICKWRAP_IFRAME_ORIGIN);
};

sendIframeMessage({
  type: 'set_data',
  data: {
    // same payload shape as launching a workflow via public API
    formValues: {
      counterpartyName: 'Example Counterparty',
      counterpartySignerEmail: '[email protected]'
    }
  },
  workflowTemplateId: WORKFLOW_TEMPLATE_ID
});

Once the data has been set in the iframe, the checkbox and acceptance language should show, as long as the data and set of default values set in Workflow Designer includes all required properties (signer name and email) and adheres to the schema described in the first section.

Customize Clickwrap Styling

You can customize the appearance of the embedded clickwrap by including an optional styles object within data in the set_data message. This allows you to control the visual appearance of the checkbox, acceptance language text, document link text, and iframe background color.

Here is an example of the set_data message with the optional styles object:

sendIframeMessage({
    type: "set_data",
    data: {
      // Same payload shape as launching a workflow via public API
      formValues: {
        counterpartyName: 'Example Counterparty',
        counterpartySignerEmail: '[email protected]'
      },
      // Optional styles object:
      styles: {
        checkbox: {
          uncheckedBorderColor: "#007490",
          uncheckedBackgroundColor: "#F8F8F7",
          checkedBackgroundColor: "#00A66F",
          checkmarkColor: "lavender",
        },
        backgroundColor: "transparent", // default value - shown for structure
        acceptanceLanguageText: {
          fontSize: "16px",
          color: "#00a66f",
          fontWeight: "500",
          fontFamily: {
            type: "common",
            fontFamilyName: "Helvetica",
          },
          fontStyle: "normal", // default value - shown for structure
          textDecoration: undefined, // default value - shown for structure
        },
        documentLink: {
          color: "#006c47",
          fontWeight: "600",
          fontFamily: {
            type: "google",
            fontFamilyName: "Borel",
          },
          fontStyle: "normal", // default value - shown for structure
          fontSize: "16px" // value inherited from acceptanceLanguageText.fontSize - shown for structure
        },
      },
    },
    workflowTemplateId: WORKFLOW_TEMPLATE_ID,
  });

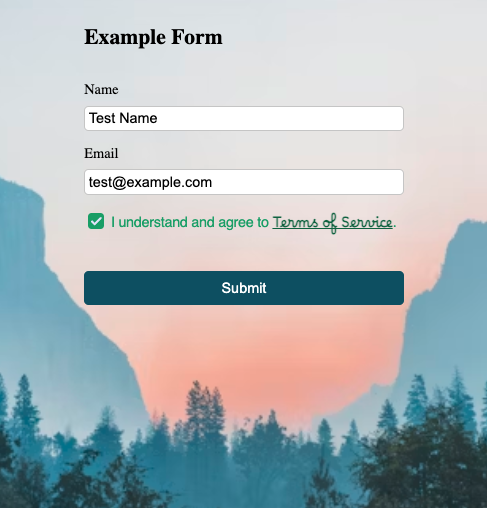

The styles object defined above would render as follows (note that in this example, the iframe has a height of 60px, a border of 0, a max-width of 450px, and a width of 100%):

Example of Embedded Clickwrap with Custom Styling

Supported Style Properties

The following sections detail the style customizations available for the different elements within the embedded clickwrap iframe.

Checkbox Styling

The table below details the properties you can customize within styles.checkbox. If no value for a given property is provided, the default value is used.


PropertyDescriptionValid InputDefault Value
uncheckedBorderColorBorder color of the checkbox when uncheckedAny valid CSS color property#1c212b
uncheckedBackgroundColorBackground color of the checkbox when uncheckedAny valid CSS color propertywhite
checkedBackgroundColorBackground color of the checkbox when checkedAny valid CSS color property#1c212b
checkmarkColorColor of the checkmark icon when checkedAny valid CSS color propertywhite

Background Styling

The table below shows the property you can use to customize the background color for the iframe within styles. If no value is provided, the default value is used.

PropertyDescriptionValid InputDefault Value
backgroundColorBackground color of the iframeAny valid CSS color propertytransparent

Acceptance Language Text Styling

The table below details the properties you can customize within styles.acceptanceLanguageText. Document links will inherit these styles unless documentLink styling is provided. If no value for a given property is provided, the default value is used.

PropertyDescriptionValid InputDefault Value
fontFamilyFont family for acceptance language textDetails for valid font family inputs hereArial
fontSizeFont size for acceptance language textAny valid CSS font-size property14px
colorText color for acceptance language textAny valid CSS color property#333
fontWeightFont weight for acceptance language textAny valid CSS font-weight property400
fontStyleFont style for acceptance language textAny valid CSS font-style propertynormal
textDecorationText decoration for acceptance language textOnly supports "underline"undefined (no underline)

Document Link Styling

The table below details the properties you can customize within styles.documentLink. Document link styles take precedence over any inherited styles from acceptanceLanguageText. If no value for a given property is provided for the document link or the acceptance language text, the default value is used. Note: Document links are always underlined.

PropertyDescriptionValid InputDefault Value
fontFamilyFont family for document link textDetails for valid font family inputs hereArial
fontSizeFont size for document link textAny valid CSS font-size property14px
colorText color for document link textAny valid CSS color property#333
fontWeightFont weight for document link textAny valid CSS font-weight property400
fontStyleFont style for document link textAny valid CSS font-style propertynormal

Text Styling Precedence Example:
styles: {
  acceptanceLanguageText: {
    color: "SteelBlue",
    fontSize: "16px",
    /* The following default values will render since not otherwise provided:
      - font family: Arial,
      - font weight: 400,
    */
  },
  documentLink: {
    color: "MidnightBlue", // Document links use MidnightBlue, rest of text uses SteelBlue
    // fontSize is not specified, so document links inherit "16px" from acceptanceLanguageText
    // inherit default font family and font weight
  }
}

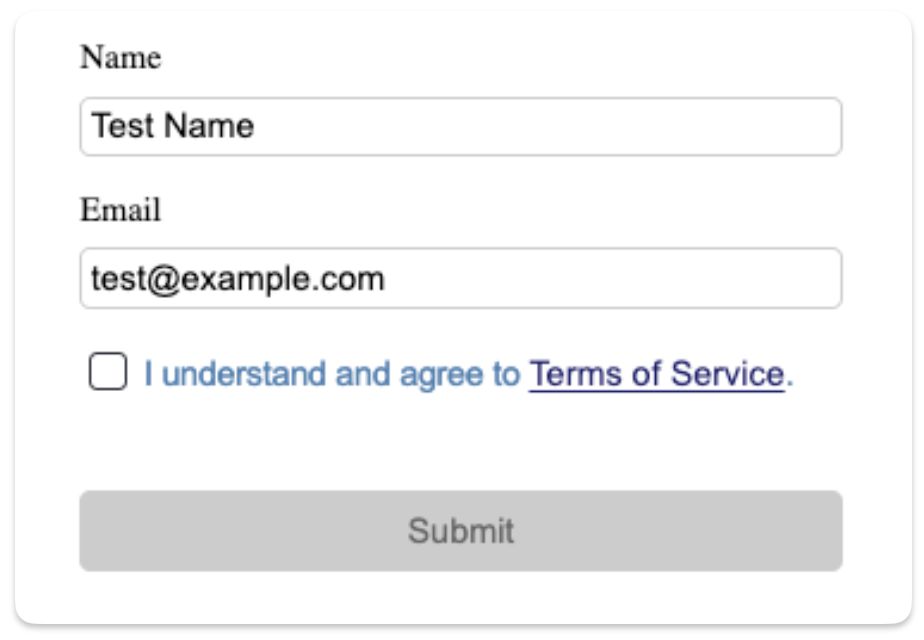

Rendering of text styling precedence example.

Font Family Options

You can customize the font for both the acceptance language text as well as the document link text. The fontFamily property accepts an object with the following structure in which you can use a supported common font, or you can use a Google Font.

{
  type: "common" | "google",
  fontFamilyName: string
}
Common Fonts

When using type: "common", the fontFamilyName must be one of the following supported fonts:

  • Courier New
  • Lucida Console
  • Times New Roman
  • Garamond
  • Georgia
  • Arial
  • Arial Narrow
  • Calibri
  • Helvetica
  • Tahoma
  • Verdana

Here is an example of how to style the acceptance language text with a common font:

  styles: {
    acceptanceLanguageText: {
      fontFamily: {
        type: "common",
        fontFamilyName: "Lucida Console",
      },
    },
  },
Google Fonts

When using type: "google", the fontFamilyName must match the exact casing and spacing as provided in the Google Fonts library. Examples below:

  • Google Font Instrument Sans:

    ✅ Correct Usage:

      fontFamily: {
        type: "google",
        fontFamilyName: "Instrument Sans"
      }


    ❌ Incorrect Usage:

    fontFamily: {
      type: 'google',
      fontFamilyName: 'instrument sans'  // casing does not match casing used in Google Fonts
    }

  • Google Font UnifrakturMaguntia (includes no spaces in its name in Google Fonts):

    ✅ Correct Usage:

    fontFamily: {
      type: "google",
      fontFamilyName: "UnifrakturMaguntia"
    }


    ❌ Incorrect Usage:

    fontFamily: {
      type: "google",
      fontFamilyName: "Unifraktur Maguntia" // incorrectly includes a space
    }

  • Google Font IBM Plex Mono:

    ✅ Correct Usage:

    fontFamily: {
      type: "google",
      fontFamilyName: "IBM Plex Mono"
    }


    ❌ Incorrect Usage:

    fontFamily: {
      type: "google",
      fontFamilyName: "IBMPlexMono" // incorrectly removes spaces
    }


Please note that if an invalid Google Font name is provided, the embedded clickwrap iframe will still load, but the browser's fallback font will be used. To debug:

  • Inspect the iframe elements and search for https://fonts.googleapis.com/css2?family=Your+Font+Name to find the url that includes that font name you provided.
  • Copy and paste the full URL into your browser to see any error messages provided from the Google Font API.

Troubleshooting Custom Styling

If any invalid styling property is provided, the iframe will post a clickwrap_load_failed event. You can handle styling errors in your message listener (additional details on listening for events can be found here):

function handleMessageFromIframe(message: MessageEvent) {
  if (message.origin !== CLICKWRAP_IFRAME_ORIGIN) {
    return;
  }

  if (message.data.type === 'clickwrap_load_failed') {
    console.log("clickwrap_load_failed");
    if (message.data.data.err) {
      console.error("Clickwrap load failed with error:", message.data.data.err);
      // Example of an invalid styling error: "Invalid color: purpel. Please use a valid CSS color value."
    }
  }
}

Loading Clickwrap Right Away

To get the acceptance language and checkbox in the iframe to display right away when you have not yet collected all the data for the acceptance, you can set default data values in the iframe as soon as the page loads — so immediately after receiving the clickwrap_initialized event — instead of waiting for the user to populate all the form values. This can also be done by posting a subset of form values — or even an empty object as form values — if default values are set for all form values in WFD.

function handleMessage(message: MessageEvent) {
  if (message.origin !== CLICKWRAP_IFRAME_ORIGIN) {
    return;
  }
  if (message.data.type === "clickwrap_initialized") {
    sendIframeMessage({
      type: "set_data",
      data: {
        formValues: {}, // use default values from Workflow Designer
      },
      workflowTemplateId: WORKFLOW_TEMPLATE_ID,
    });
  }
}

However, you should still send an updated set_data message with the final values before sending the send_acceptance message to capture acceptance, to ensure that the correct metadata is included with the acceptance.

Sending Acceptance

Similar to how you set data above, you will also need to send the iframe a message to trigger an acceptance.

sendIframeMessage({
  type: "send_acceptance",
  workflowTemplateId: WORKFLOW_TEMPLATE_ID,
});

As a prerequisite, the checkbox must be checked to send the acceptance. If data has not yet been set in the clickwrap iframe, the clickwrap has not loaded, or the checkbox is not checked, the acceptance will not send, and the parent page will receive a clickwrap_acceptance_failed message from the iframe.

Listening For Events

In turn, the embedded clicwkrap page also sends events to the parent page.
There are various events that you can listen to using an event listener. Once you have attached an event listener to the iframe, you may see the following events:

type IframeToParentMessageData =
    // Triggered when the application has loaded and is ready to accept events (e.g. `set_data`).
  | { type: 'clickwrap_initialized' }
    // Triggered when the application receives the `set_data` calls and is in the process of retrieving additional data.
  | { type: 'clickwrap_is_loading' }
    // Triggered when the application successfully retrieved data after `set_data` was called.
    // This is typically the time where the checkbox and acceptance language will now show.
    // If you set the iframe visibility to "hidden" initially to prevent the white background from showing before load,
    // you would also need to set the iframe's visibility to "visible" at this time.
  | { type: 'clickwrap_load_succeeded' }
    // Triggered when the application was not able to retrieve data after `set_data` was called.
  | { type: 'clickwrap_load_failed', data: { err: unknown } }
    // Triggered when a user clicks on a link in the acceptance language.
    // The template is the ID of the template clicked, and the URL is the link used to download the document.
  | { type: 'clickwrap_link_clicked', data: { template: string; url: string } }
    // Triggered when the user checks the checkbox.
    // This is often useful for when you want to make other actions available (e.g. submit button becomes clickable).
  | { type: 'clickwrap_checkbox_checked' }
    // Triggered when the user unchecks the checkbox.
    // This is often useful if you need to prevent the user from taking a future action until the box is checked again.
  | { type: 'clickwrap_checkbox_unchecked' }
    // Triggered when the `send_acceptance` event successfully sends acceptance.
  | { type: 'clickwrap_acceptance_succeeded' }
    // Triggered when the `send_acceptance` event was unable to successfully send acceptance.
  | { type: 'clickwrap_acceptance_failed', data: { err: unknown } };

Example Skeleton Listener

function handleMessage(message: MessageEvent) {
  if (message.origin !== CLICKWRAP_IFRAME_ORIGIN) {
    return;
  }

  switch (message.data.type) {
    case 'clickwrap_initialized':
      // loaded, can now set data
    case 'clickwrap_is_loading':
      // data has been set, clickwrap is loading within iframe
    case 'clickwrap_load_succeeded':
      // clickwrap is loaded and is now interactable
    case 'clickwrap_load_failed':
      // clickwrap loading failed, check data and try setting data again
      // clickwrap loading failed will post if any invalid style property is provided
    case 'clickwrap_link_clicked':
      // notification that the user has downloaded a clickwrap document
    case 'clickwrap_checkbox_checked':
      // The user has checked the checkbox for acceptance.
      // If this is a required part of your user flow, other dependent actions,
      // e.g. a form submit button, can now be enabled.
      // Update your app state accordingly.
      // It is now permissable to post the `send_acceptance` event to the iframe.
    case 'clickwrap_checkbox_unchecked':
      // The user has previously checked the checkbox for acceptance,
      // but has now unchecked the box.
      // If this is a required part of your user flow, other dependent actions,
      // e.g. a form submit button, can now be disabled.
      // Update your app state accordingly.
    case 'clickwrap_acceptance_succceeded':
      // The acceptance has been successfully sent and recorded.
    case 'clickwrap_acceptance_failed':
      // The acceptance was not successfully sent and recorded.
    default:
      console.error('invalid message', { message });
  }
}

const iframe = document.getElementById('my-iframe');
iframe.addEventListener("load", () => {
  window.addEventListener("message", handleMessage);
});
